专利号:201120522145.X。专利类型：实用新型。
产品材质:采用低卤素硬质PVC料制成,环保无污染,不含铅等有毒物。
产品认证:美国UL:E306674 欧洲CE 欧洲环保RoHS,REACH,铁道阻燃低烟。
防火等级:UL94V-0,低烟微卤,遇火不燃烧,防火性及绝缘性特佳。

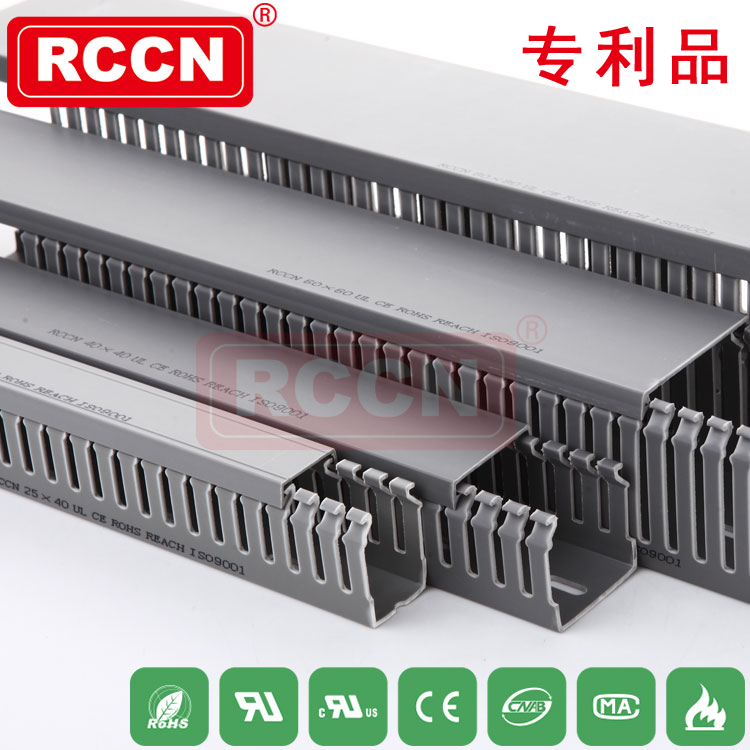

产品构造:由槽底及槽盖组成,底槽两侧设有出线孔。

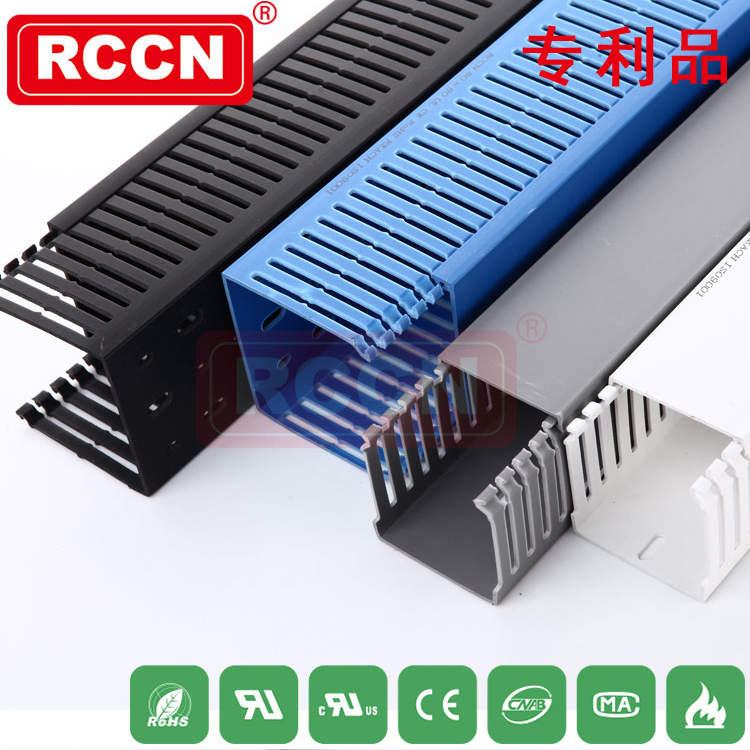

颜 色 :灰色.白色.蓝色.黑色
工作温度 :静态-40°C持续高温至65°C,短时间可达85°C。
使用方法:先将底槽固定,将所要配的线装入槽内,盖上槽盖即可。
产品特性 : 1.反扣式槽盖与槽体设计组合後绝不脱落,且接合面平滑,不割伤手 及擦损附近配线。
2.配线槽65°C内不易断裂,变形,变色,装配省时便利。
3.出线孔低、组合容易、拆卸简单、易于配线。
更多选择:量大可按需求生产所需规格或定制长度.例:VDR8080F(L=1.7M)
推荐：灰色为常规库存产品,其它颜色有起订量要求。*交期待确认。
标准长度：2米/支
| 型号Item No. 出线孔4MM | 宽*高 W*H | 孔宽 Q | 齿宽 P | 电线容量 以2.0平方计算 | 装箱/M | |||
| 灰色Gray | 白色White | 蓝色Blue | 黑色Black | |||||
| HVDR1616F | HVDR1616FW | HVDR1616FE | HVDR1616FB | 16*16 | 5 | 5 | 3~10pcs | / |
| HVDR2516F | HVDR2516FW | HVDR2516FE | HVDR2516FB | 25*16 | 5 | 5 | 3~10pcs | / |
| HVDR1520F | HVDR1520FW | HVDR1520FE | HVDR1520FB | 15*20 | 4 | 6 | 8~12pcs | 200M |
| HVDR2020F | HVDR2020FW | HVDR2020FE | HVDR2020FB | 20*20 | 4 | 6 | 10~20pcs | 140M |
| HVDR4020F | HVDR4020FW | HVDR4020FE | HVDR4020FB | 40*20 | 4 | 6 | 12~28pcs | 140M |
| HVDR1525F | HVDR1525FW | HVDR1525FE | HVDR1525FB | 15*25 | 5 | 6 | 5~15pcs | / |
| HVDR2025F | HVDR2025FW | HVDR2025FE | HVDR2025FB | 20*20 | 4 | 6 | 5~15pcs | 100M |
| HVDR2525F | HVDR2525FW | HVDR2525FE | HVDR2525FB | 25*25 | 4 | 6 | 10~25pcs | 120M |
| HVDR3025F | HVDR3025FW | HVDR3025FE | HVDR3025FB | 30*25 | 4 | 6 | 12~28pcs | 100M |
| HVDR4025F | HVDR4025FW | HVDR4025FE | HVDR4025FB | 40*25 | 4 | 6 | 12~28pcs | 120M |
| HVDR5025F | HVDR5025FW | HVDR5025FE | HVDR5025FB | 50*25 | 4 | 6 | 20~30pcs | 100M |
| HVDR1530F | HVDR1530FW | HVDR1530FE | HVDR1530FB | 15*30 | 4 | 6 | 20~30pcs | 160M |
| HVDR2030F | HVDR2030FW | HVDR2030FE | HVDR2030FB | 20*30 | 4 | 6 | 20~30pcs | 128M |
| HVDR2530F | HVDR2530FW | HVDR2530FE | HVDR2530FB | 25*30 | 4 | 6 | 25~35pcs | 100M |
| HVDR3030F | HVDR3030FW | HVDR3030FE | HVDR3030FB | 30*30 | 4 | 6 | 25~35pcs | 120M |
| HVDR4030F | HVDR4030FW | HVDR4030FE | HVDR4030FB | 40*30 | 4 | 6 | 30~40pcs | 100M |
| HVDR5030F | HVDR5030FW | HVDR5030FE | HVDR5030FB | 50*30 | 4 | 6 | 35~45pcs | 100M |
| HVDR6030F | HVDR6030FW | HVDR6030FE | HVDR6030FB | 60*30 | 4 | 6 | 40~50pcs | 80M |
| HVDR2233F | HVDR2233FW | HVDR2233FE | HVDR2233FB | 22*33 | 5 | 6 | 30~45pcs | 130M |
| HVDR3333F | HVDR3333FW | HVDR3333FE | HVDR3333FB | 33*33 | 4 | 6 | 35~45pcs | / |
| HVDR2035F | HVDR2035FW | HVDR2035FE | HVDR2035FB | 20*35 | 4 | 6 | 30~40pcs | / |
| HVDR3535F | HVDR3535FW | HVDR3535FE | HVDR3535FB | 35*35 | 4 | 6 | 35~45pcs | 100M |
| HVDR5035F | HVDR5035FW | HVDR5035FE | HVDR5035FB | 50*35 | 4 | 6 | 40~60pcs | 88M |
| HVDR2040F | HVDR2040FW | HVDR2040FE | HVDR2040FB | 20*40 | 4 | 6 | 16~22pcs | 100M |
| HVDR2540F | HVDR2540FW | HVDR2540FE | HVDR2540FB | 25*40 | 4 | 6 | 20~25pcs | 112M |
| HVDR3540F | HVDR3540FW | HVDR3540FE | HVDR3540FB | 35*40 | 4 | 6 | 50~60pcs | / |
| HVDR4040F | HVDR4040FW | HVDR4040FE | HVDR4040FB | 40*40 | 4 | 6 | 60~70pcs | 100 |
| HVDR6040F | HVDR6040FW | HVDR6040FE | HVDR6040FB | 60*40 | 4 | 6 | 100~115pcs | 68M |
| HVDR8040F | HVDR8040FW | HVDR8040FE | HVDR8040FB | 80*40 | 4 | 6 | 120~135pcs | 48M |
| HVDR10040F | HVDR10040FW | HVDR10040FE | HVDR10040FB | 100*40 | 4 | 6 | 120~135pcs | 36M |
| HVDR12040F | HVDR12040FW | HVDR12040FE | HVDR12040FB | 120*40 | 4 | 6 | 140-155pcs | / |
| HVDR2545F | HVDR2545FW | HVDR2545FE | HVDR2545FB | 25*45 | 4 | 6 | 20~25pcs | 100M |
| HVDR3345F | HVDR3345FW | HVDR3345FE | HVDR3345FB | 33*45 | 4 | 6 | 40~55pcs | 104M |
| HVDR4545F | HVDR4545FW | HVDR4545FE | HVDR4545FB | 45*45 | 4 | 6 | 60~70pcs | 72M |
| HVDR6545F | HVDR6545FW | HVDR6545FE | HVDR6545FB | 65*45 | 4 | 6 | 110~120pcs | 50M |
| HVDR2050F | HVDR2050FW | HVDR2050FE | HVDR2050FB | 20*50 | 4 | 6 | 18~28pcs | / |
| HVDR2550F | HVDR2550FW | HVDR2550FE | HVDR2550FB | 25*50 | 4 | 6 | 20~30pcs | 100M |
| HVDR3050F | HVDR3050FW | HVDR3050FE | HVDR3050FB | 30*50 | 4 | 6 | 25~40pcs | 84M |
| HVDR3550F | HVDR3550FW | HVDR3550FE | HVDR3550FB | 35*50 | 4 | 6 | 40~60pcs | 80M |
| HVDR4050F | HVDR4050FW | HVDR4050FE | HVDR4050FB | 40*50 | 4 | 6 | 60~70pcs | 72M |
| HVDR4550F | HVDR4550FW | HVDR4550FE | HVDR4550FB | 45*50 | 4 | 6 | 70~80pcs | 68M |
| HVDR5050F | HVDR5050FW | HVDR5050FE | HVDR5050FB | 50*50 | 4 | 6 | 80~90pcs | 60M |
| HVDR5550F | HVDR5550FW | HVDR5550FE | HVDR5550FB | 55*50 | 4 | 6 | 80~90pcs | 48M |
| HVDR6050F | HVDR6050FW | HVDR6050FE | HVDR6050FB | 60*50 | 4 | 6 | 100~120pcs | 52M |
| HVDR7550F | HVDR7550FW | HVDR7550FE | HVDR7550FB | 75*50 | 4 | 6 | 120~140pcs | 40M |
| HVDR8050F | HVDR8050FW | HVDR8050FE | HVDR8050FB | 80*50 | 4 | 6 | 160~180pcs | 40M |
| HVDR10050F | HVDR10050FW | HVDR10050FE | HVDR10050FB | 100*50 | 4 | 6 | 200~250pcs | 28M |
| HVDR12555F | HVDR12555FW | HVDR12555FE | HVDR12555FB | 125*55 | 4 | 6 | 220~270pcs | / |
| HVDR2060F | HVDR2060FW | HVDR2060FE | HVDR2060FB | 20*60 | 4 | 6 | 35~45pcs | 100M |
| HVDR2560F | HVDR2560FW | HVDR2560FE | HVDR2560FB | 25*60 | 4 | 6 | 40~50pcs | 100M |
| HVDR3060F | HVDR3060FW | HVDR3060FE | HVDR3060FB | 30*60 | 4 | 6 | 60~80pcs | 84M |
| HVDR3560F | HVDR3560FW | HVDR3560FE | HVDR3560FB | 35*60 | 4 | 6 | 90~105pcs | 80M |
| HVDR4060F | HVDR4060FW | HVDR4060FE | HVDR4060FB | 40*60 | 4 | 6 | 100~115pcs | 72M |
| HVDR4560F | HVDR4560FW | HVDR4560FE | HVDR4560FB | 45*60 | 4 | 6 | 110~125pcs | 60M |
| HVDR5060F | HVDR5060FW | HVDR5060FE | HVDR5060FB | 50*60 | 4 | 6 | 120~135pcs | 60M |
| HVDR6060F | HVDR6060FW | HVDR6060FE | HVDR6060FB | 60*60 | 4 | 6 | 120~135pcs | 48M |
| HVDR8060F | HVDR8060FW | HVDR8060FE | HVDR8060FB | 80*60 | 4 | 6 | 180~210pcs | 36M |
| HVDR10060F | HVDR10060FW | HVDR10060FE | HVDR10060FB | 100*60 | 4 | 6 | 240~290pcs | 32M |
| HVDR11060F | HVDR11060FW | HVDR11060FE | HVDR11060FB | 110*60 | 4 | 6 | 250~300pcs | 48M |
| HVDR12060F | HVDR12060FW | HVDR12060FE | HVDR12060FB | 120*60 | 4 | 6 | 260~320pcs | / |
| HVDR15060F | HVDR15060FW | HVDR15060FE | HVDR15060FB | 150*60 | 4 | 6 | 300~360pcs | 24M |
| HVDR2565F | HVDR2565FW | HVDR2565FE | HVDR2565FB | 25*65 | 4 | 6 | 40~50pcs | 88M |
| HVDR3365F | HVDR3365FW | HVDR3365FE | HVDR3365FB | 33*65 | 4 | 6 | 40~70pcs | 80M |
| HVDR4565F | HVDR4565FW | HVDR4565FE | HVDR4565FB | 45*65 | 4 | 6 | 110~120pcs | 60M |
| HVDR6565F | HVDR6565FW | HVDR6565FE | HVDR6565FB | 65*65 | 4 | 6 | 180~200pcs | 40M |
| HVDR7265F | HVDR7265FW | HVDR7265FE | HVDR7265FB | 72*65 | 4 | 6 | 180~230pcs | 32M |
| HVDR2575F | HVDR2575FW | HVDR2575FE | HVDR2575FB | 25*75 | 4 | 6 | 180-210pcs | / |
| HVDR3575F | HVDR3575FW | HVDR3575FE | HVDR3575FB | 35*75 | 4 | 6 | 180-210pcs | / |
| HVDR5075F | HVDR5075FW | HVDR5075FE | HVDR5075FB | 50*75 | 4 | 6 | 180~210pcs | 40M |
| HVDR7575F | HVDR7575FW | HVDR7575FE | HVDR7575FB | 75*75 | 4 | 6 | 200~240pcs | 24M |
| HVDR10075F | HVDR10075FW | HVDR10075FE | HVDR10075FB | 100*75 | 4 | 6 | 240~280pcs | 24M |
| HVDR2580F | HVDR2580FW | HVDR2580FE | HVDR2580FB | 25*80 | 4 | 6 | 100~120pcs | 72M |
| HVDR3080F | HVDR3080FW | HVDR3080FE | HVDR3080FB | 30*80 | 4 | 6 | 110~125pcs | 56M |
| HVDR3580F | HVDR3580FW | HVDR3580FE | HVDR3580FB | 35*80 | 4 | 6 | 110~130pcs | 56M |
| HVDR4080F | HVDR4080FW | HVDR4080FE | HVDR4080FB | 40*80 | 4 | 6 | 140~160pcs | 48M |
| HVDR4580F | HVDR4580FW | HVDR4580FE | HVDR4580FB | 45*80 | 4 | 6 | 140~160pcs | 40M |
| HVDR5080F | HVDR5080FW | HVDR5080FE | HVDR5080FB | 50*80 | 4 | 6 | 160~180pcs | 40M |
| HVDR5580F | HVDR5580FW | HVDR5580FE | HVDR5580FB | 55*80 | 4 | 6 | 160~180pcs | 32M |
| HVDR6080F | HVDR6080FW | HVDR6080FE | HVDR6080FB | 60*80 | 4 | 6 | 180~210pcs | 32M |
| HVDR8080F | HVDR8080FW | HVDR8080FE | HVDR8080FB | 80*80 | 4 | 6 | 240~290pcs | 24M |
| HVDR10080F | HVDR10080FW | HVDR10080FE | HVDR10080FB | 100*80 | 4 | 6 | 260~350pcs | 24M |
| HVDR12080F | HVDR12080FW | HVDR12080FE | HVDR12080FB | 120*80 | 4 | 6 | 280~380pcs | 16M |
| HVDR14080F | HVDR14080FW | HVDR14080FE | HVDR14080FB | 140*80 | 4 | 6 | 350~450pcs | 16M |
| HVDR16080F | HVDR16080FW | HVDR16080FE | HVDR16080FB | 160*80 | 4 | 6 | 50-550pcs | / |
| HVDR25100F | HVDR25100FW | HVDR25100FE | HVDR25100FB | 25*100 | 4 | 6 | 110~160pcs | 60M |
| HVDR33100F | HVDR33100FW | HVDR33100FE | HVDR33100FB | 33*100 | 4 | 6 | 130~175pcs | 44M |
| HVDR40100F | HVDR40100FW | HVDR40100FE | HVDR40100FB | 40*100 | 4 | 6 | 130~175pcs | 44M |
| HVDR50100F | HVDR50100FW | HVDR50100FE | HVDR50100FB | 50*100 | 4 | 6 | 220~250pcs | 40M |
| HVDR60100F | HVDR60100FW | HVDR60100FE | HVDR60100FB | 60*100 | 4 | 6 | 240~290pcs | 32M |
| HVDR70100F | HVDR70100FW | HVDR70100FE | HVDR70100FB | 70*100 | 4 | 6 | 250~310pcs | 24M |
| HVDR75100F | HVDR75100FW | HVDR75100FE | HVDR75100FB | 75*100 | 4 | 6 | 260~350pcs | 24M |
| HVDR80100F | HVDR80100FW | HVDR80100FE | HVDR80100FB | 80*100 | 4 | 6 | 260~350pcs | 24M |
| HVDR100100F | HVDR100100FW | HVDR100100FE | HVDR100100FB | 100*100 | 4 | 6 | 300~400pcs | 24M |
| HVDR120100F | HVDR120100FW | HVDR120100FE | HVDR120100FB | 120*100 | 4 | 6 | 350~450pcs | 16M |
| HVDR150100F | HVDR150100FW | HVDR150100FE | HVDR150100FB | 150*100 | 4 | 6 | 400~650pcs | 16M |
| HVDR150130F | HVDR150130FW | HVDR150130EF | HVDR150130FB | 150*130 | 4 | 6 | 400~650pcs | / |
| HVDR160100F | HVDR160100FW | HVDR160100FE | HVDR160100FB | 160*100 | 4 | 6 | 500-750pcs | 24 |
| HVDR100130F | HVDR100130FW | HVDR100130FE | HVDR100130FB | 100*130 | 4 | 6 | 350-450pcs | / |
| HVDR200100F | HVDR200100FW | HVDR200100FE | HVDR200100FB | 200*100 | 4 | 6 | 600~800pcs | / |
| HVDR200150F | HVDR200150FW | HVDR200150FE | HVDR200150FB | 200*150 | 4 | 6 | 900-1200pcs | / |
| HVDR200200F | HVDR200200FW | HVDR200200FE | HVDR200200FB | 200*200 | 4 | 6 | 1200-1600pcs | / |
